TL;DR: Replaced a formal State Pattern with event-driven signals and small behavior classes. Result: clearer ownership, faster iteration, and easier testing.
The past few days I tore out our old interaction system and rebuilt it around an event-driven, behavior-based architecture. The original version leaned on a textbook State Pattern with separate state classes orchestrating input and transitions. It “worked,” but it fought Unity’s strengths, added indirection, and made changes feel heavier than they needed to be.
Why change a working system?
- Indirection hid the real flow. Debugging required chasing state transitions and lifecycles spread across multiple classes.
- Unity isn’t a pure OO sandbox. Component wiring and UnityEvents are powerful; the formal state graph got in the way of quick iteration.
- Testing was awkward. State objects had implicit dependencies; behaviors and input routing were hard to exercise in isolation.
The new model in one sentence: Input is event-driven, detection is trigger-based, “what happens” lives in pure C# behavior classes, and data flows through a read-only interaction context. That’s it.
What changed, concretely
- Event-driven input: A thin input wrapper raises events. The manager listens and either starts a behavior (when focused) or forwards the signal to the currently active behavior.
- Behavior-based execution: Interactions such as “instant press” or “enter control mode” are pure C# behaviors that can be swapped per interactable. No MonoBehaviour inheritance required.
- Immutable-style context: Behaviors receive a context object exposing player/camera/input safely. The context is treated as read-only during execution to avoid subtle side-effects.
- Trigger-based detection: Instead of raycasts/hybrid modes, we use small trigger components on interactables. The player detector tracks nearby interactables and chooses the best candidate (e.g., closest and available).

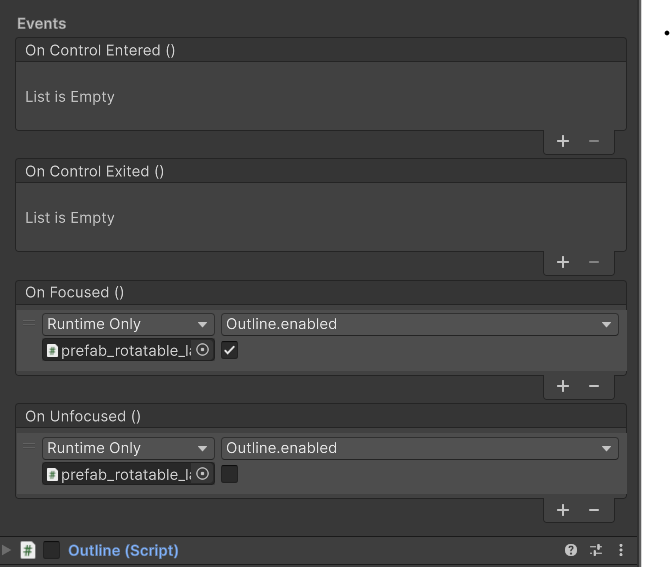

- UnityEvent feedback: Interactables expose OnFocused/OnUnfocused as UnityEvents so designers can hook visuals/audio in the Inspector — no hardcoded feedback mapping.

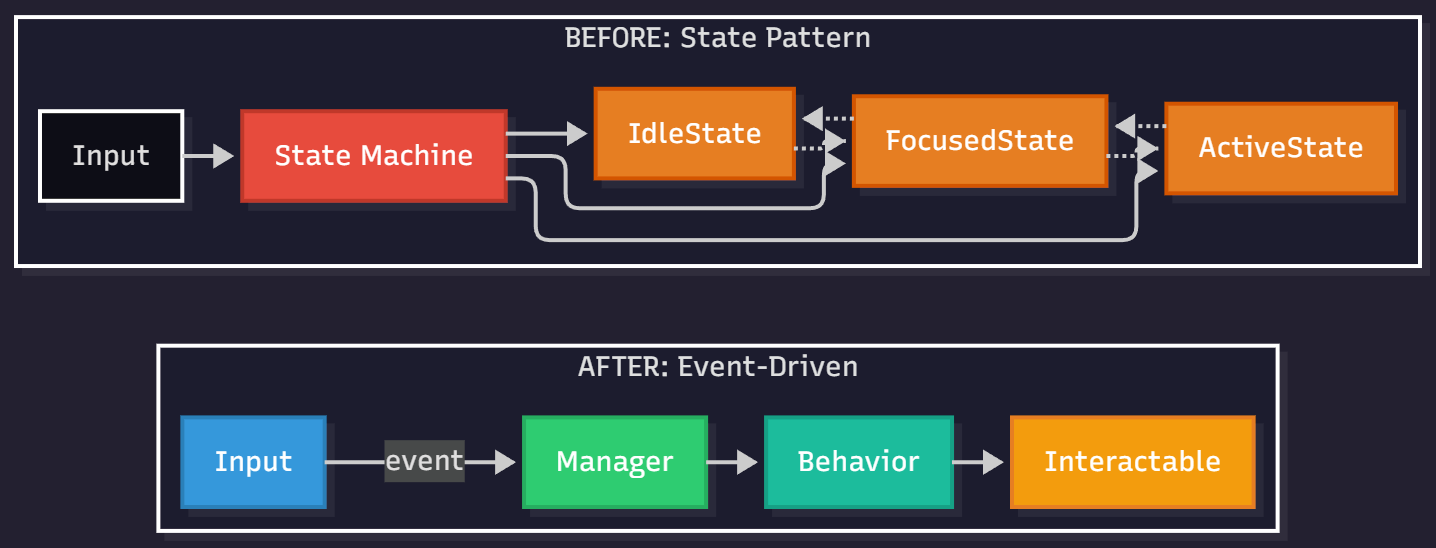

Before vs. after (conceptual)
// Before: state objects own transitions and input branching
interface IInteractionState {
void Enter();
void Update();
void Exit();
void OnInteractPressed();
}
IdleState.OnInteractPressed() => transition to Focused or do nothing
FocusedState.OnInteractPressed() => start interaction or warn
ActiveState.OnInteractPressed() => route to behavior or exit
// After: signals and behaviors
onInteractStarted() {
if (hasFocused && canInteract) start(behavior);
else if (isActive) activeBehavior.handleInteract(context);
}
behavior.Execute(interactable, context);

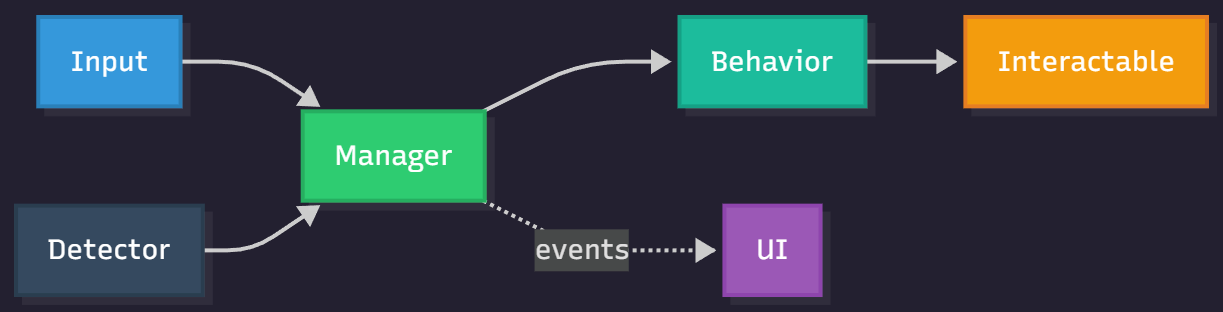

behavior.OnComplete += () => restore focus or idle;This simplification removed state classes, reduced coupling, and made ownership obvious: the manager coordinates, behaviors execute, interactables declare capabilities.
Minimal Behavior skeleton
public interface IInteractionBehavior
{
void Execute(Interactable interactable, InteractionContext context);
}
public sealed class InstantPressBehavior : IInteractionBehavior
{
public void Execute(Interactable i, InteractionContext c)
{ /* Do the thing: e.g., open door, toggle lever, call event...*/ }
}
Why triggers over raycasts?
- Predictability: Triggers make “in range” explicit and level-designable. You can tune colliders per object instead of global raycast distances.
- Performance: Triggers avoid per-frame raycast logic and branching for hybrid modes.
- Extensibility: Raycasts can be layered in later without breaking the core system. Today’s needs are simple; we optimized for that.
About the context object
Even in Unity, immutability (or “immutable-style” usage) pays off for interactions. Behaviors get a single bundle of references—player controller, camera, input façade, anchors—and never mutate it. That makes reasoning about behavior execution (and testing) straightforward.
// Construct/context setup once at runtime
context = new InteractionContext {
FpsController = playerController,
PlayerCamera = camera,
Input = inputFacade,
// plus anchor lookups / helpers
};
// Later in behavior
Execute(interactable, context) {
// Read only; do not mutate context
// Use data to move, enter control mode, or trigger actions
}UI hooks and control mode feedback
The manager emits state changes, which a small UI controller listens to. That controller swaps crosshair styles (idle, focus, grab/hold) and can fade a subtle border when in “control mode.” Because these are just event listeners, you can iterate on UI feedback without touching interaction logic.
What improved in day-to-day work
- Adding a new interaction: Implement a small behavior class, assign it to an interactable, done.
- Tuning detection: Adjust a trigger collider and layer in the Inspector. No code merges to tweak global ranges.
- Testing: Behaviors are pure C#; you can exercise them without standing up entire scenes.
- Stability: Fewer moving parts and clearer ownership reduced “who owns this input now?” bugs.
Trade-offs
- Gave up theoretical elegance (formal state classes) for practical clarity. The enum + events are enough.
- Trigger-only is opinionated; specialized interactions (e.g., long-range raycast) will add a second path later. For now, it’s good enough.
Closing thoughts
If you’re fighting a “clever” architecture, it might be time to simplify. For us, moving from state objects to signals and behaviors made the system more Unity-native, easier to test, and faster to extend. If you’d like more deep dives like this, follow the project and wishlist Chiaroscuro on Steam — your feedback shapes what we build next.
